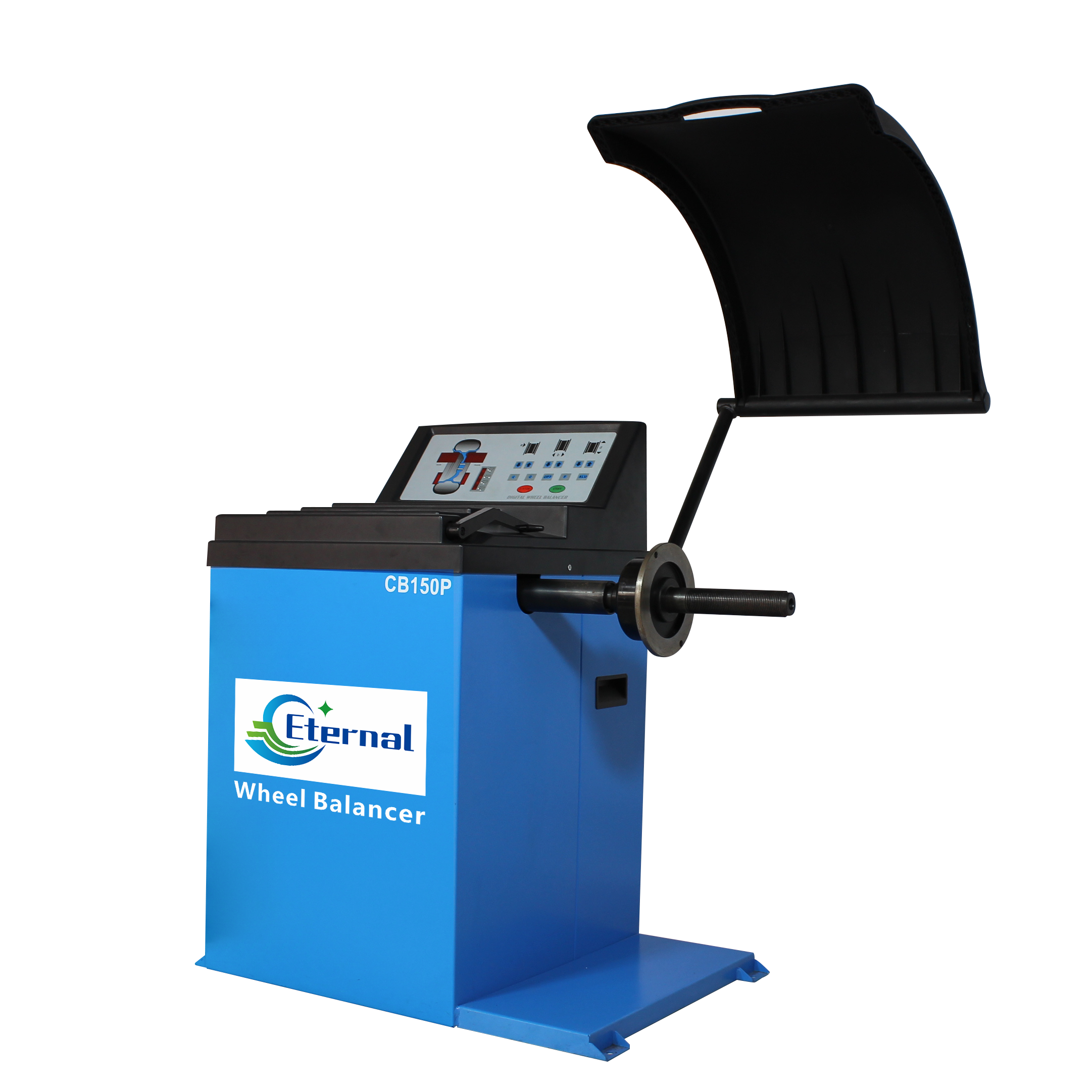

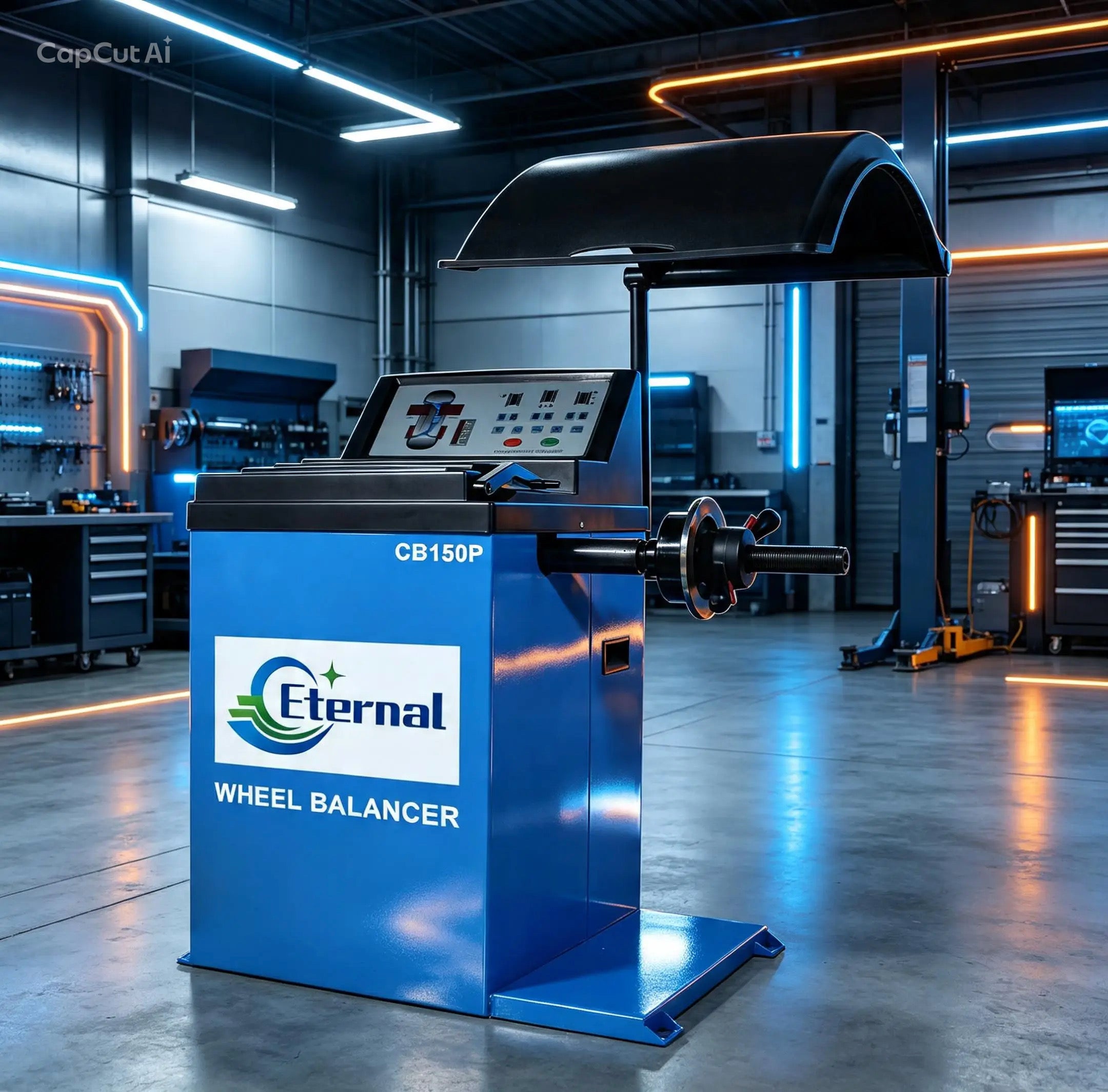

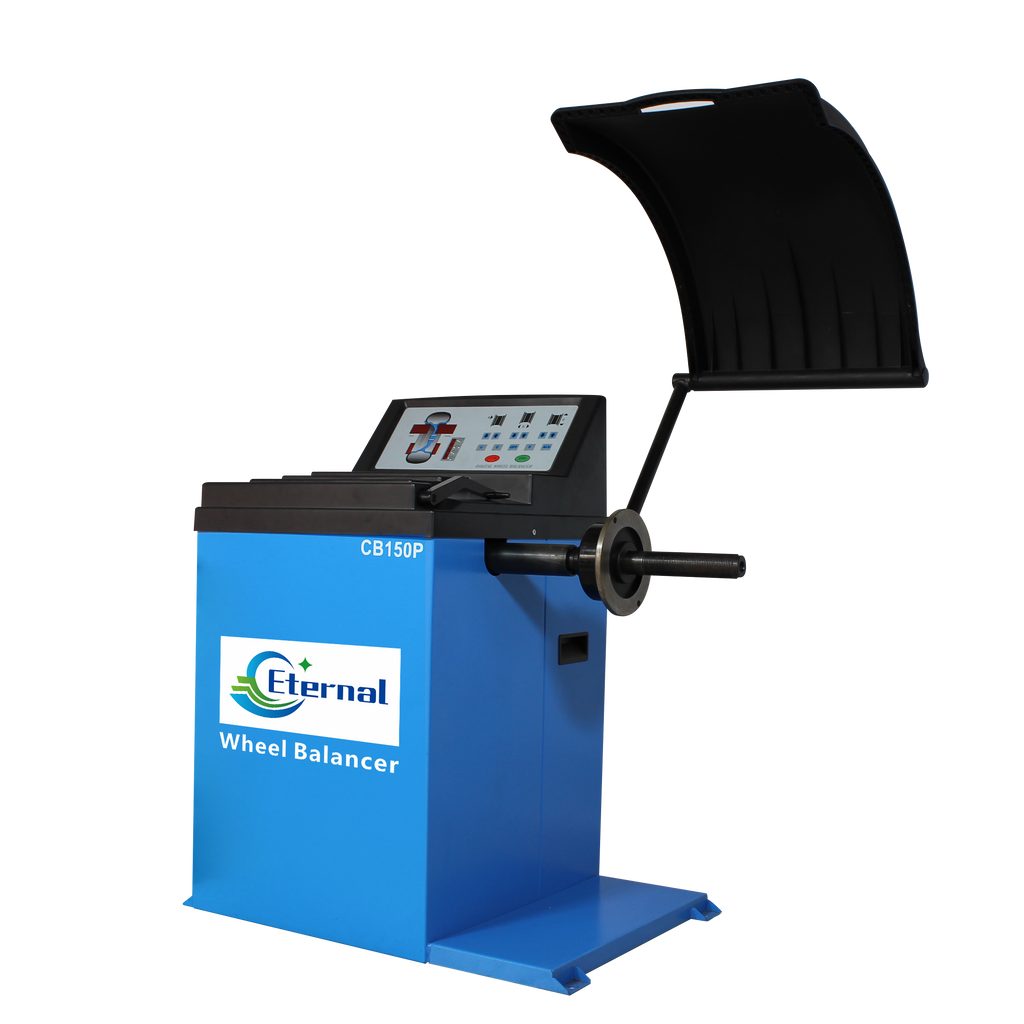

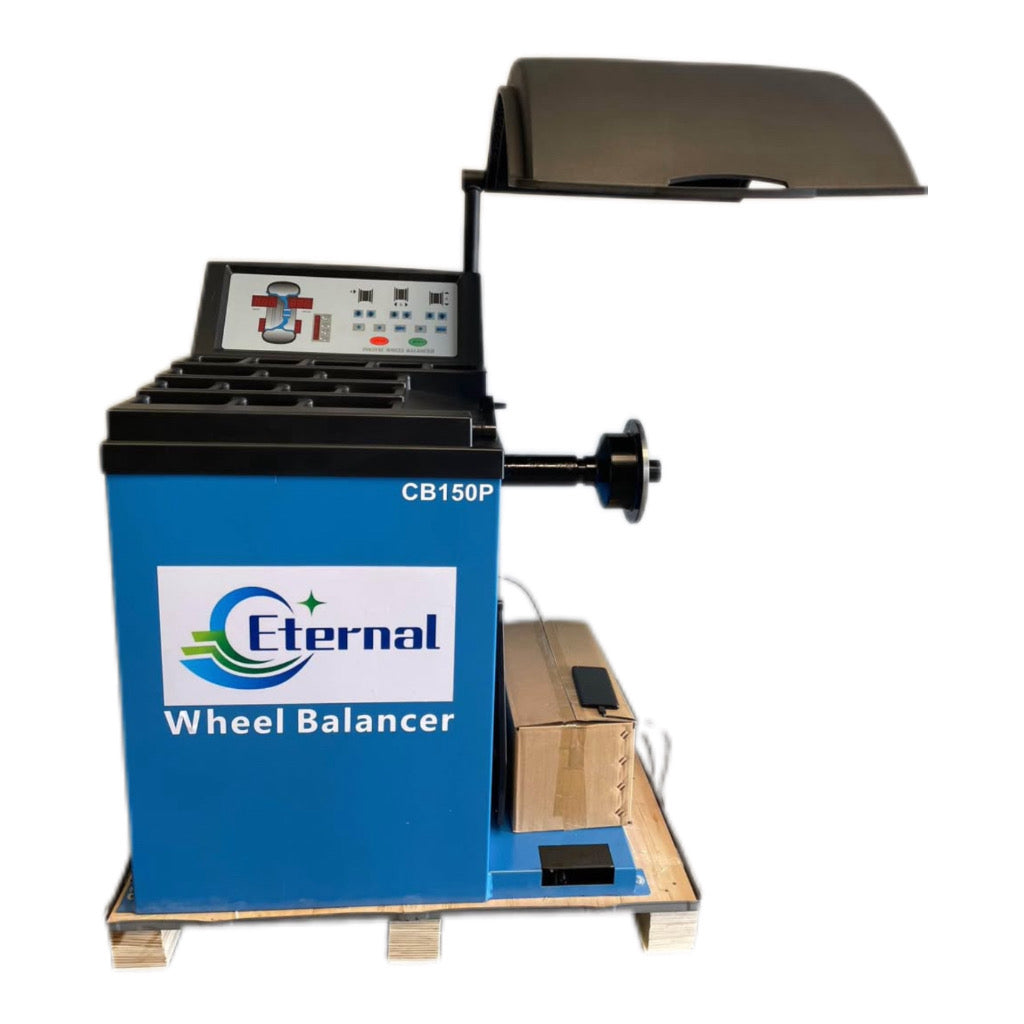

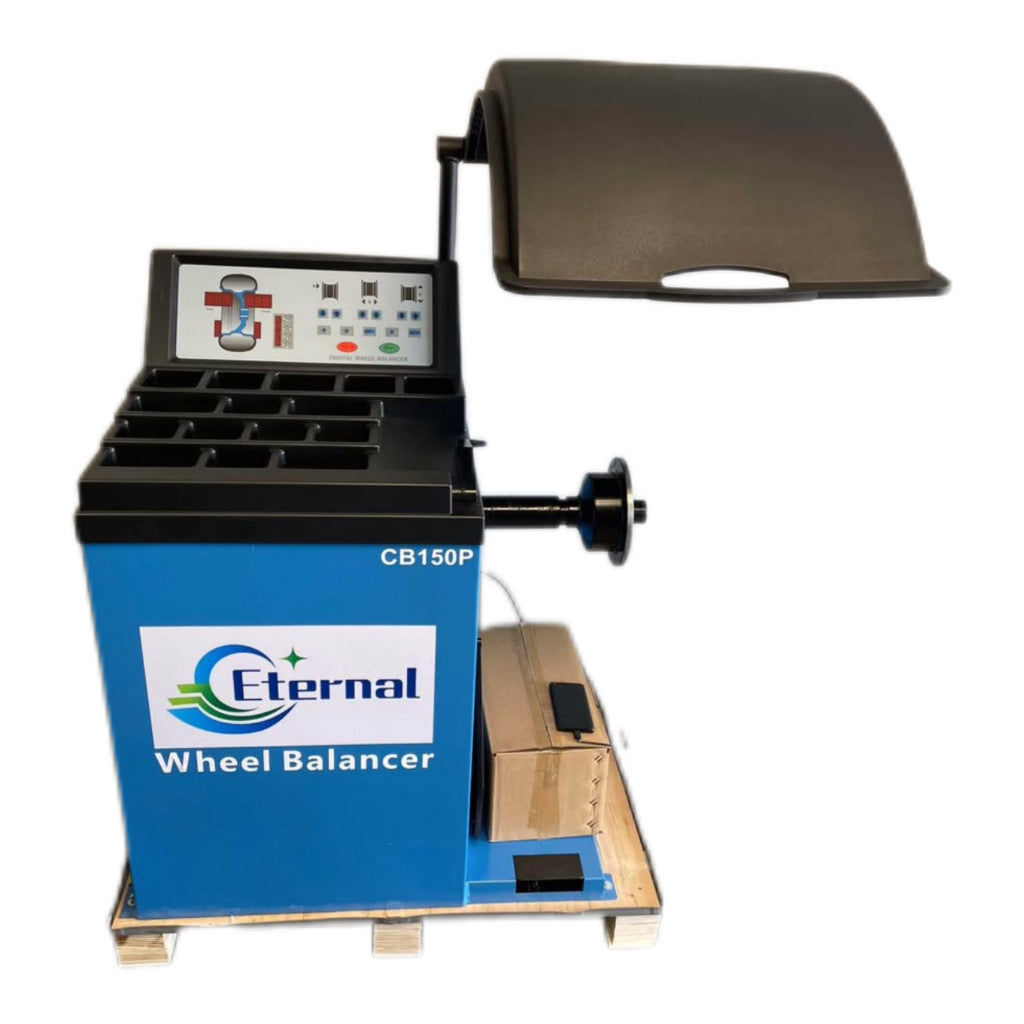

CB150P Tire Balancing Machine with Laser 110V/60Hz Tire Balancer

Commercial Laser Tire Balancing Machine - Professional Dynamic and Static Tire Balancing Tool (100V-230V)

Key Features

High-Precision and Fast Balancing: Balancing accuracy up to 1 gram, balancing cycle in just 7 seconds. Utilizes advanced vibration/pressure sensors to ensure ultimate stability and deliver smooth vehicle performance.

Precise Laser Indicator: Built-in laser positioning light precisely guides the counterweight to the 6 o'clock or 12 o'clock position, eliminating guesswork and reducing recalibration.

Multiple Modes for Various Vehicle Models: Supports Normal Mode, Static Mode, ALU-1, ALU-2, ALU-3, and ALU-S modes. Designed for dynamic and static balancing of passenger car, light truck, and motorcycle wheels.

Wide Rim Compatibility: Suitable for tires with rim diameters from 10 inches to 24 inches and rim widths from 3 inches to 16 inches, with a maximum tire diameter of 1100 mm (43.3 inches) and a maximum rim load of 70 kg (154 lbs).

User-friendly dual-unit switching: Bright and intuitive LED digital display panel. Easily switch between grams/ounces and millimeters/inches using simple shortcut key combinations. Standard accessories include tapered washers, quick-clamp nuts, calipers, and balance pliers.

Product Description: Upgrade your auto repair shop or home garage with the CB150P Professional Digital Wheel Balancer. This machine features a high-precision piezoelectric vibration sensor and an intuitive LED control screen, providing commercial-grade accuracy (1 gram) and a cycle time of just 7 seconds.

Whether you're handling standard steel wheels, custom aluminum rims, or light truck tires, the CB150P easily handles loads up to 154 pounds (70 kg). The integrated laser positioning system clearly marks the precise location of adhesive or clip-on counterweights, saving you time and money.

Key Highlights:

Laser-guided accuracy: Easily and accurately position counterweights (supports 6 o'clock laser guidance or traditional 12 o'clock mode).

Multiple balancing modes: Switchable between normal dynamic, static, ALU1-ALU3, and dedicated ALU-S concealed counterweight balancing modes.

Self-calibration and self-diagnosis: Easy step-by-step user self-calibration ensures long-term accuracy and reliability.

Global power compatibility: Operates on a wide voltage input range (100V-230V, 50/60Hz).

Technical Specifications Features/Parameters Specifications Model CB150P Wheel Balancer

Maximum Wheel Weight: 70 kg (154 lbs)

Power Supply: 100V - 230V, 50/60Hz

Balancing Accuracy: ±1 g (±0.035 oz)

Balancing Time: 7 seconds

Speed: 90/130 rpm

Rim/Hoop Diameter Range: 10 inches - 24 inches

Rim/Hoop Width Range: 3 inches - 16 inches

Maximum Tire Diameter: 1100 mm (43.3 inches)

Noise Level: < 70 dB(A)

Net Weight: 93 kg (205 lbs)

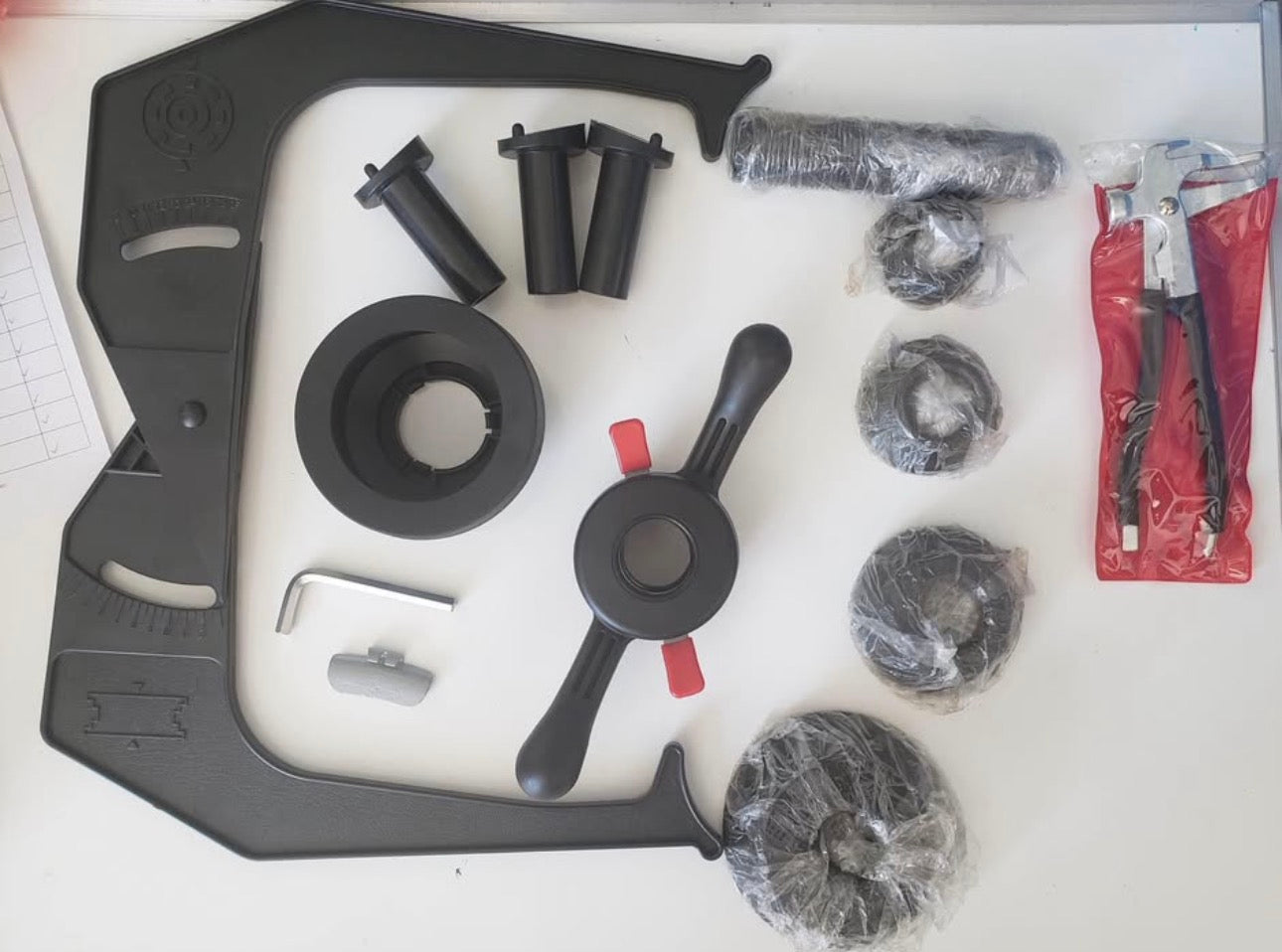

Package Includes:

1 × CB150P Digital Wheel Balancer

1 × Quick-Release Clamping Nut

1 × Wheel Caliper (Measuring Tool)

1 × Wheel Weight Clamping Pliers

4 × Centering Cone (Multi-size Set)

1 × User Manual

Ships via Freight with Liftgate Delivery
